NEW RELEASE 2026

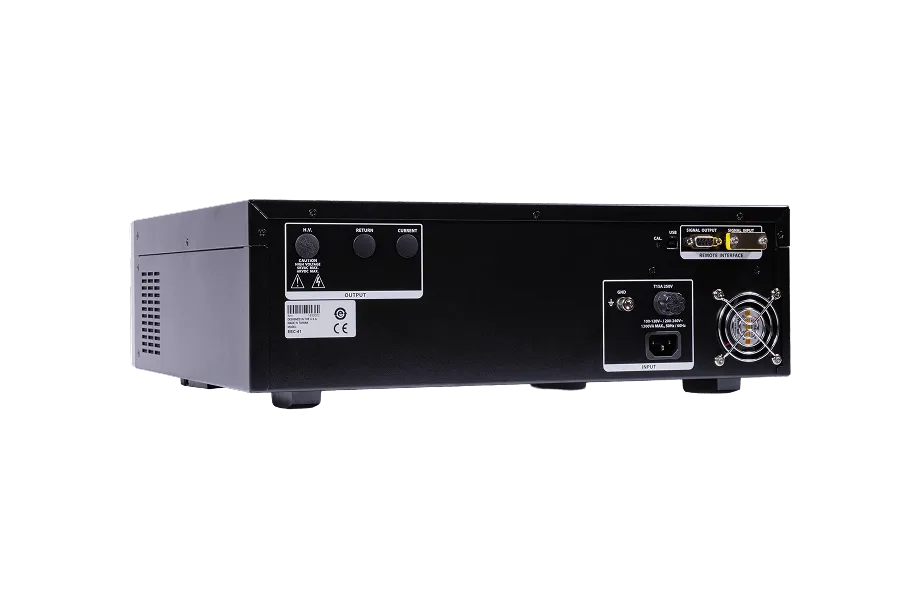

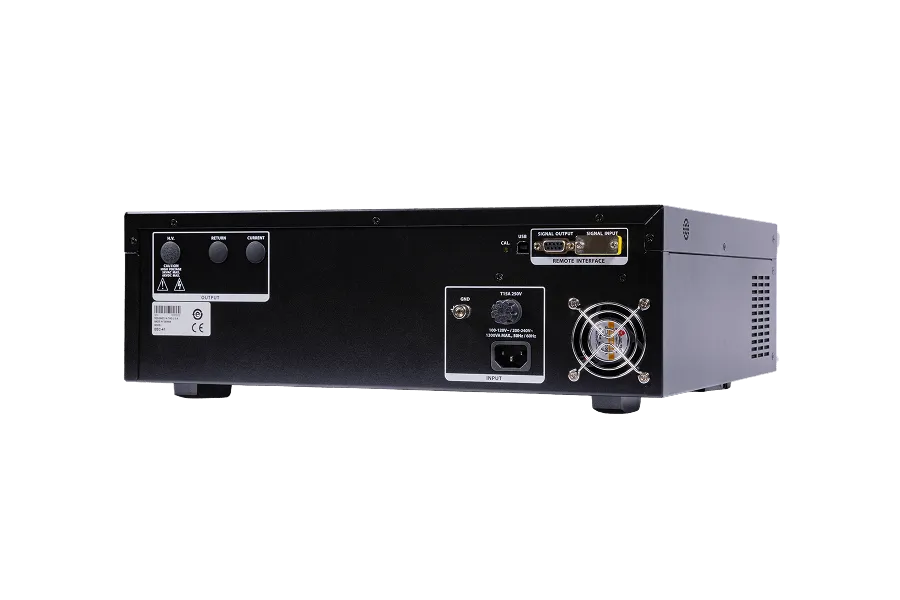

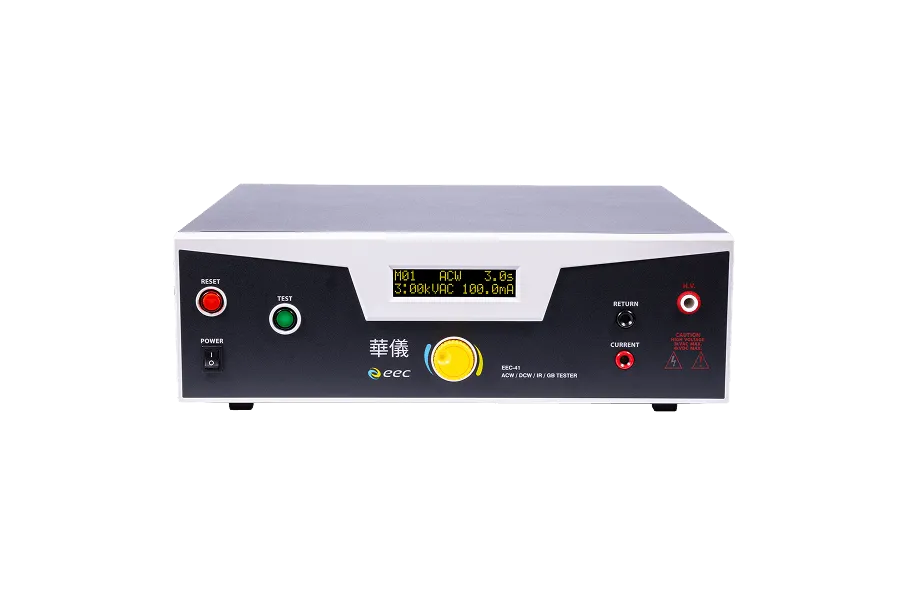

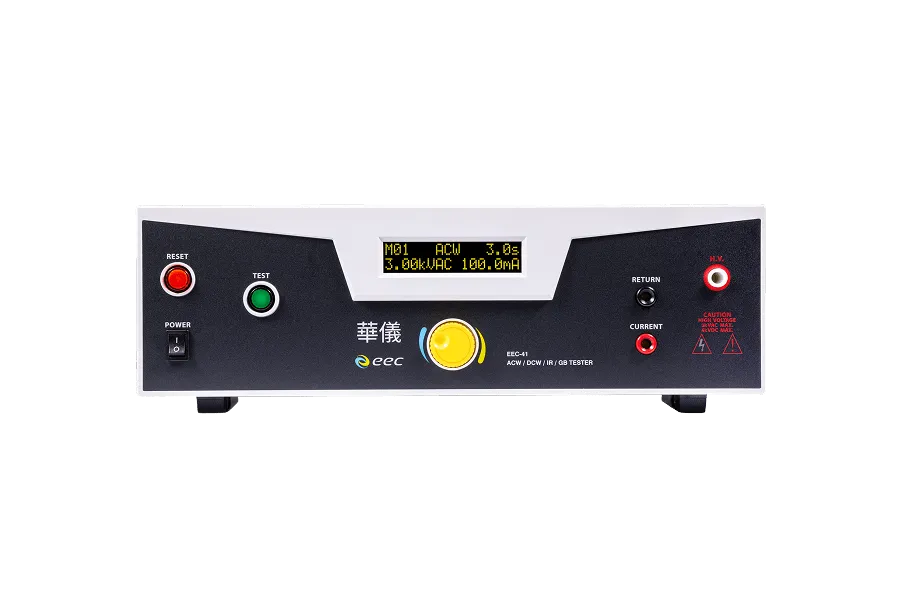

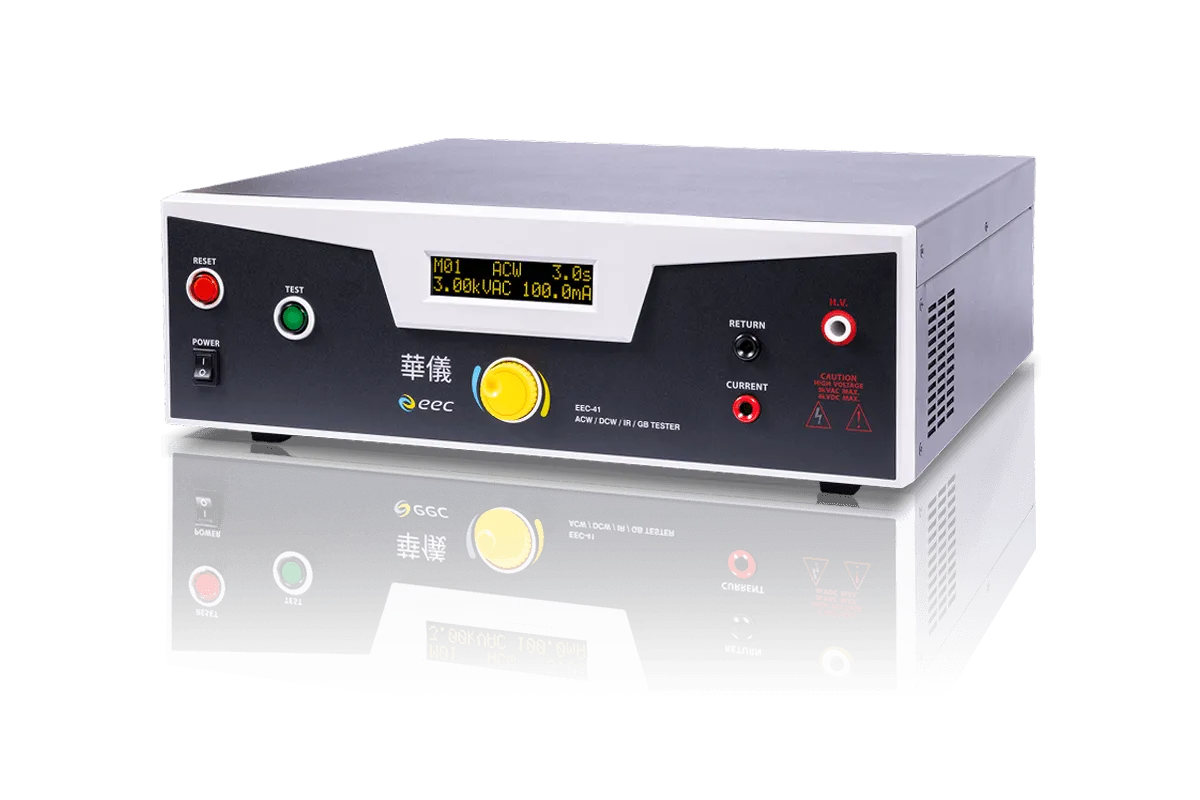

EEC-41 Hipot & Ground Bond Tester

4 Electrical Safety Tests in 1 Unit

The EEC Huayi EEC-41 is a CE-certified 4-in-1 hipot tester for manufacturers. ACW, DCW, IR, and Ground Bond testing in one instrument.

STARTING AT
USD2,099
Contact Sales
AC Hipot
DC Hipot
IR Testing
Ground Bond
AC Hipot
DC Hipot
IR Testing
Ground Bond

Four Tests, One Hipot Tester

ACW, DCW, IR, and Ground Bond electrical safety testing in a single instrument. No need for a separate ground bond tester.

45-day Unconditional Return Policy

Our 45-day unconditional return policy lets you verify performance on your production line, backed by a 1-year global warranty for long-term reliability.

45+ Years of Manufacturing Experience

The EEC-41 is built by EEC Huayi, a manufacturer of electrical safety testers with over 45 years of production experience.

Product Details

What Makes the EEC-41 Hipot and Ground Bond Tester Different

Most manufacturers running ground bond testing operate two separate instruments: a hipot tester and a dedicated ground bond tester. That means two units to procure, two calibration schedules to manage, and more time spent mounting and unmounting devices under test.

The EEC-41 eliminates that setup entirely. One instrument handles all four tests, reducing bench space, cutting ongoing calibration costs, and simplifying operator workflow.

Request a quoteVideo

Specifications

Test Functions:
AC Withstand (3 KV / 100 mA), DC Withstand (4 KV / 5 mA), Insulation Resistance (1 KV / 1000 MΩ), Ground Bond (1.0–32.0 A)
Safety & Control:
CE Certified, PLC Remote Control, Run Only & Memory Lock Security
Productivity:
3 Test Memories, Charge LO
Dimensions:
(W × H × D) 430 × 132 × 400 mm
Weight:
24 kg

Downloads

Quick Start GuideDatasheetManualDriver EEC-41

Video Channel

Quick Start Video
Operational Guide

EEC-41 Hipot and Ground Bond Tester Features

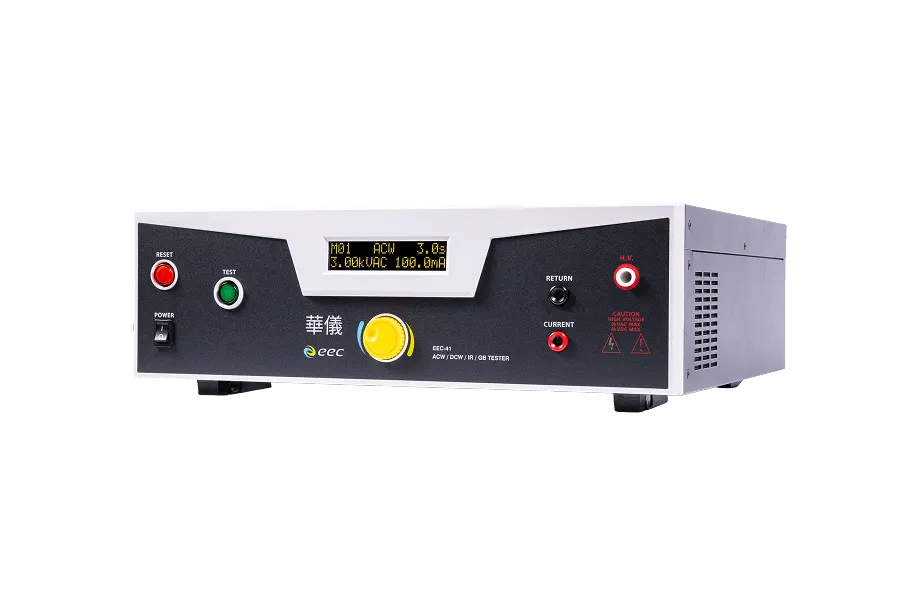

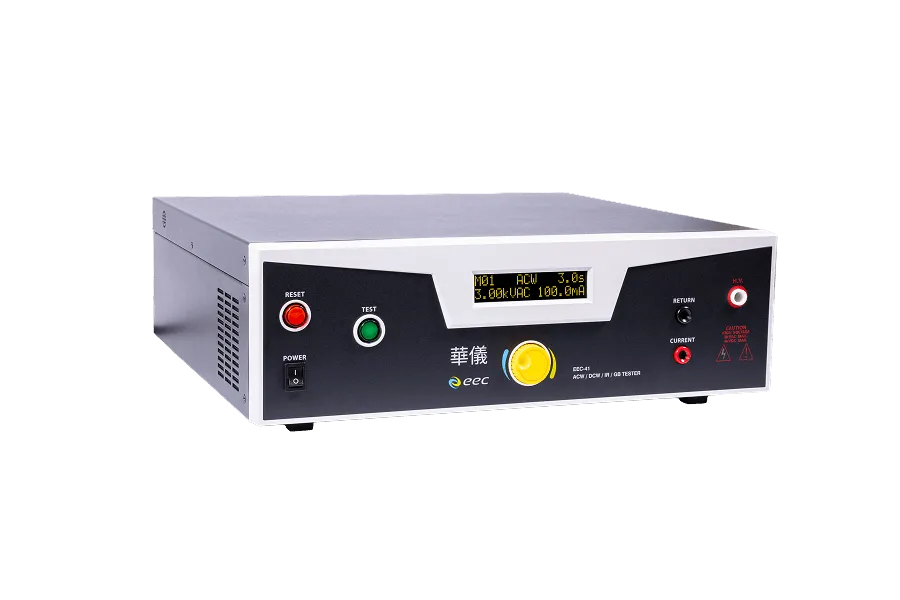

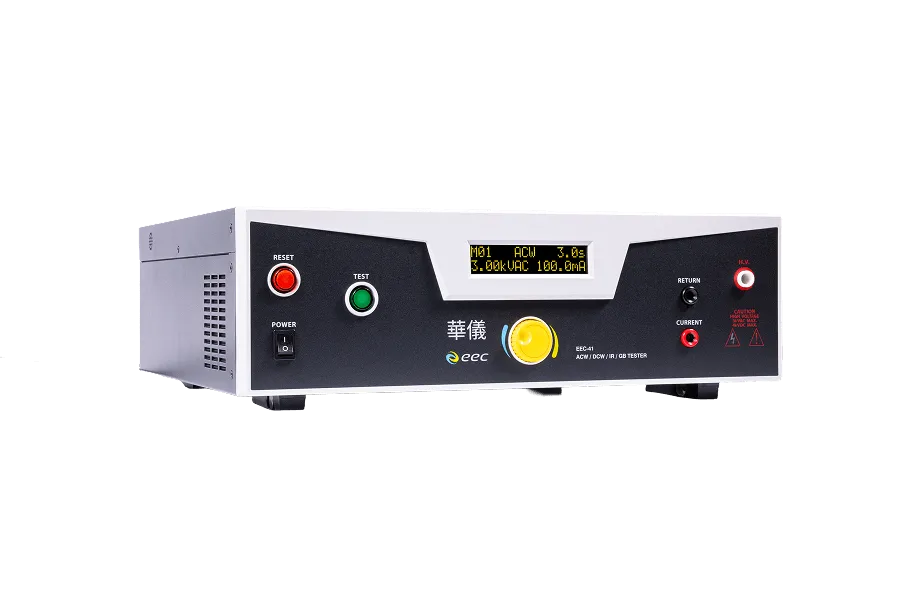

One Dial. Full Control.

The EEC-41 uses a single rotary push control to simplify setup and programming. Instead of navigating multiple buttons and menu keys, operators rotate to adjust values and press to confirm selections.
  • Simple. Fast. Intuitive
  • Adjust Settings Instantly
  • Press to Confirm
  • Rotate to Select Test Mode

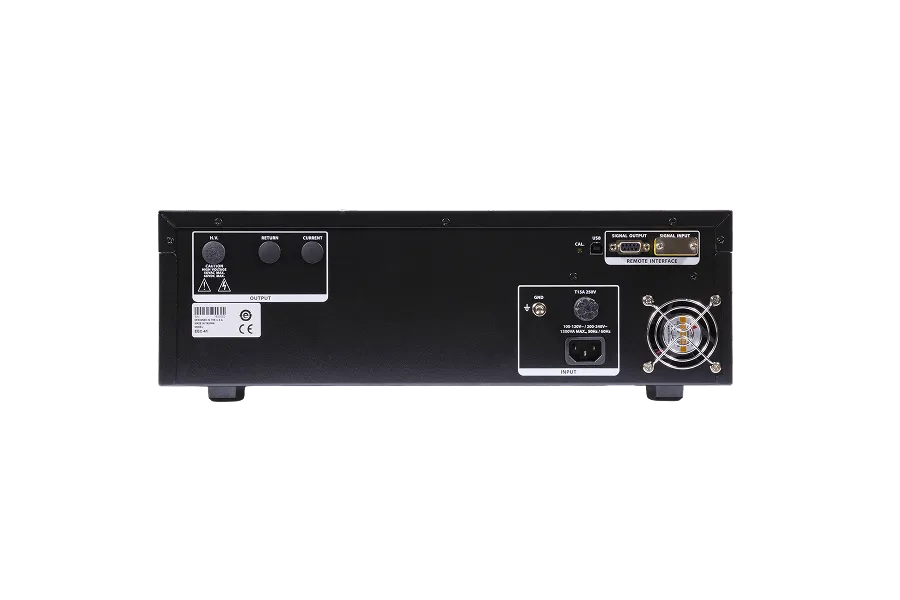

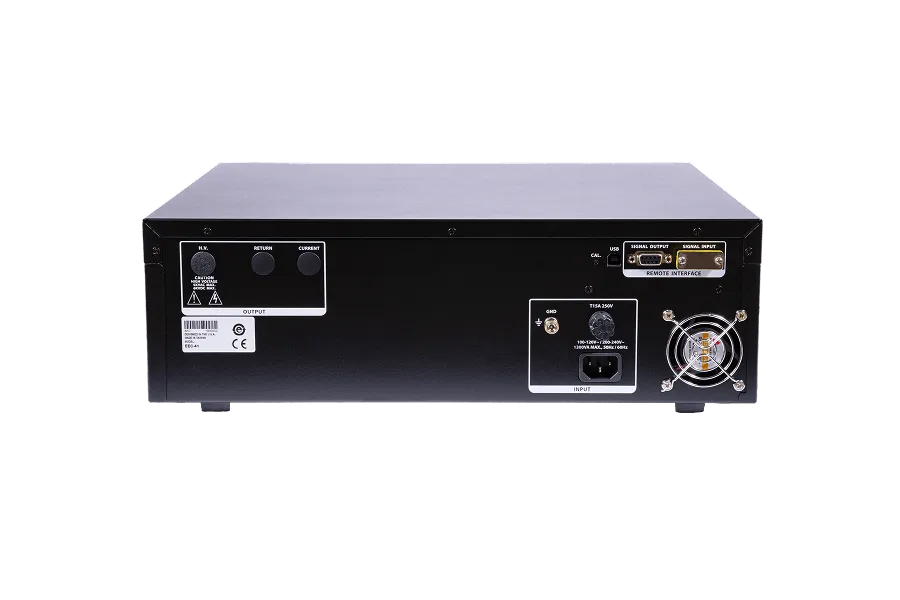

PLC Remote Control

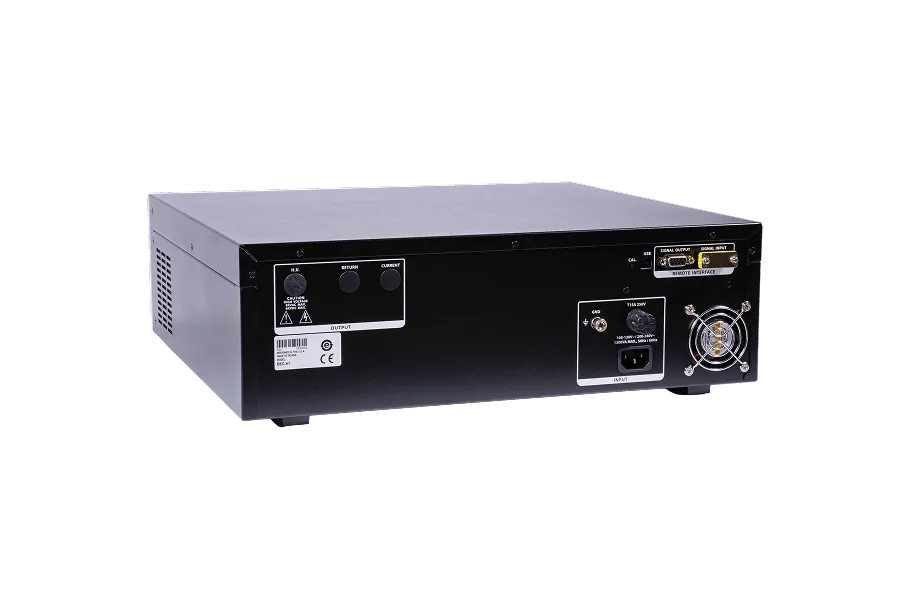

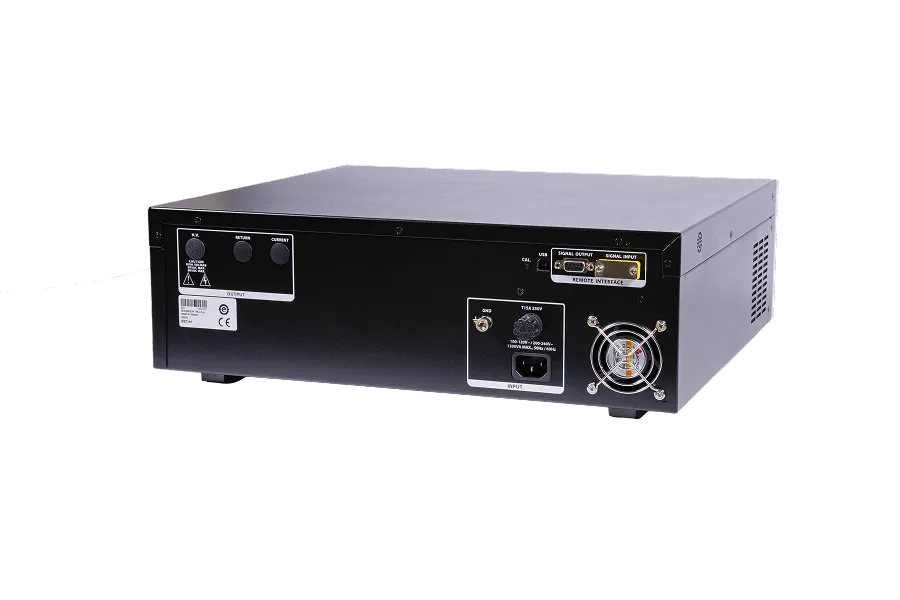

Supports PLC remote control interface, allowing flexible adaptation to different production line applications. For test data acquisition, an optional USB communication interface is also available.

Key Features

  • PLC remote control, compatible with SCI unit interface
  • 3 storable test memories for fast production-line recall
  • Run Only and Memory Lock security modes
  • Shared accessories with SCI units
  • Operators trained in minutes, no complex setup
  • CE certified and IEC compliant
  • Professional calibration available
Request a quote
Only Need Hipot Testing?

Only Need Hipot Testing?

If your production process requires ACW, DCW, and IR testing but not Ground Bond, the EEC Huayi EEC-31 may be the right electrical safety tester for your line.

View EEC-31

News

View All
EEC Huayi hipot tester being verified against traceable reference standards during annual calibration
How Often Does a Hipot Tester Need Calibration?
Do You Require a Hipot Tester with Ground Bond on Your Appliance Line?
Do You Require a Hipot Tester with Ground Bond on Your Appliance Line?
IEC 60335-1 Ground Bond Test Requirements | EEC Huayi
Ground Bond Testing to IEC 60335-1 on an Appliance Production Line
PLC Control for Hipot Testers – How Remote Control Improves Production Line Testing
PLC Control for Hipot Testers – How Remote Control Improves Production Line Testing
AC / DC Hipot & IR Testing - Which Method Does Your Production Line Need?
AC / DC Hipot & IR Testing – Which Method Does Your Production Line Need?
Electrical Safety Test Standards Explained: IEC, UL, and GB
Why Hipot Safety Testing Is Critical for Electrical Products
What Is Electrical Safety Testing in Manufacturing?

FAQ

The EEC-41 is a 4-in-1 hipot tester that performs four electrical safety tests: AC Withstand (ACW) at 3 KV, DC Withstand (DCW) at 4 KV, Insulation Resistance (IR) at 1 KV up to 1000 MOhm, and Ground Bond (GB) from 1.0 to 32.0 A. If your process does not require Ground Bond testing, see the EEC Huayi EEC-31, a 3-in-1 electrical safety tester.

Yes. The EEC-41 hipot tester carries CE certification and is manufactured to IEC standards. It is suitable for production environments where a certified electrical safety tester is required by a certification agency.

Yes. The EEC-41 electrical safety tester is designed specifically to replace a separate hipot tester and ground bond tester. Using one instrument reduces bench space, simplifies operator workflow, and means you only need to manage a single calibration schedule.

The EEC-41 carries a 1-year warranty, supported through EEC Huayi’s authorized APAC distribution network. No extended warranty is available. Professional calibration services are available through IKT and IKA to maintain hipot tester accuracy over time.

Yes. The EEC-41 electrical safety tester supports PLC remote control using the same interface as SCI units. Test leads and accessories are also compatible with SCI units, simplifying spare parts procurement for facilities already operating SCI electrical safety testing equipment.

EEC Huayi offers a 45-day unconditional return policy on the EEC-41 hipot tester. If the unit does not meet your testing requirements within that period, it can be returned without condition.

The EEC-41 is manufactured by EEC Huayi, a brand under the Ikonix group. EEC Huayi has manufactured electrical safety testers since 1978 and serves small and mid-size manufacturers across APAC, the Americas, Europe, and EMEA.
